HANGON QUICK WIRE SHAFT
Design Patent
| Art. nr. | Antal/kart. | Antal hängpunkter | L, mm | c/c, mm |
|---|---|---|---|---|
| HQW D350X350X2,0 | 180 | 4 | 350 | 350 |
| HQW D350X175X2,0 | 180 | 6 | 350 | 175 |
| HQW D450X450X2,0 | 180 | 4 | 450 | 450 |
| HQW D450X225X2,0 | 180 | 6 | 450 | 225 |
| HQW D450X150X2,0 | 180 | 8 | 450 | 150 |
| HQW D450X75X2,0 | 180 | 14 | 450 | 75 |
| HQW D450X50X2,0 | 180 | 20 | 450 | 50 |
| HQW D550X550X2,0 | 180 | 4 | 550 | 550 |
| HQW D550X275X2,0 | 180 | 6 | 550 | 275 |
| HQW D525X175X2,0 | 180 | 8 | 525 | 175 |
| HQW D500X100X2,0 | 180 | 12 | 500 | 100 |
| HQW D525X75X2,0 | 180 | 16 | 525 | 75 |
| HQW D550X50X2,0 | 180 | 24 | 550 | 50 |
| HQW D650X325X2,0 | 180 | 6 | 650 | 325 |
| HQW D625X125X2,0 | 180 | 12 | 625 | 125 |
| HQW D600X75X2,0 | 180 | 18 | 600 | 75 |
| HQW D650X50X2,0 | 180 | 28 | 650 | 50 |
| HQW D750X375X2,0 | 180 | 6 | 750 | 375 |
| HQW D750X250X2,0 | 180 | 8 | 750 | 250 |
| HQW D750X150X2,0 | 180 | 12 | 750 | 150 |
| HQW D750X125X2,0 | 180 | 14 | 750 | 125 |
| HQW D750X75X2,0 | 180 | 22 | 750 | 75 |
| HQW D750X50X2,0 | 180 | 32 | 750 | 50 |
| HQW D950X475X2,0 | 180 | 6 | 950 | 475 |
| HQW D900X225X2,0 | 180 | 10 | 900 | 225 |
| HQW D900X150X2,0 | 180 | 14 | 900 | 150 |
| HQW D900X100X2,0 | 180 | 20 | 900 | 100 |
| HQW D950X50X2,0 | 180 | 40 | 950 | 50 |
| Art. nr. | Antal/kart. | Antal hängpunkter | L, mm | c/c, mm |
|---|---|---|---|---|
| HQW D350X350X2,0 | 180 | 4 | 350 | 350 |
| HQW D350X175X2,0 | 180 | 6 | 350 | 175 |
| HQW D450X450X2,0 | 180 | 4 | 450 | 450 |
| HQW D450X225X2,0 | 180 | 6 | 450 | 225 |
| HQW D450X150X2,0 | 180 | 8 | 450 | 150 |
| HQW D450X75X2,0 | 180 | 14 | 450 | 75 |
| HQW D450X50X2,0 | 180 | 20 | 450 | 50 |
| HQW D550X550X2,0 | 180 | 4 | 550 | 550 |
| HQW D550X275X2,0 | 180 | 6 | 550 | 275 |
| HQW D525X175X2,0 | 180 | 8 | 525 | 175 |
| HQW D500X100X2,0 | 180 | 12 | 500 | 100 |
| HQW D525X75X2,0 | 180 | 16 | 525 | 75 |
| HQW D550X50X2,0 | 180 | 24 | 550 | 50 |
| HQW D650X325X2,0 | 180 | 6 | 650 | 325 |
| HQW D625X125X2,0 | 180 | 12 | 625 | 125 |
| HQW D600X75X2,0 | 180 | 18 | 600 | 75 |
| HQW D650X50X2,0 | 180 | 28 | 650 | 50 |
| HQW D750X375X2,0 | 180 | 6 | 750 | 375 |
| HQW D750X250X2,0 | 180 | 8 | 750 | 250 |
| HQW D750X150X2,0 | 180 | 12 | 750 | 150 |
| HQW D750X125X2,0 | 180 | 14 | 750 | 125 |
| HQW D750X75X2,0 | 180 | 22 | 750 | 75 |
| HQW D750X50X2,0 | 180 | 32 | 750 | 50 |
| HQW D950X475X2,0 | 180 | 6 | 950 | 475 |
| HQW D900X225X2,0 | 180 | 10 | 900 | 225 |
| HQW D900X150X2,0 | 180 | 14 | 900 | 150 |
| HQW D900X100X2,0 | 180 | 20 | 900 | 100 |
| HQW D950X50X2,0 | 180 | 40 | 950 | 50 |

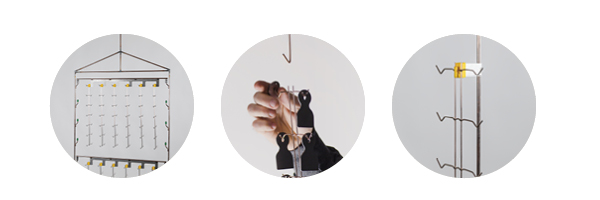

- Snabb, 3 gånger snabbare än kedjehängning
- Packning – effektiv logistik och lättplockad ur kartong
- Lågt pris
- Stabil – dubbeltråd gör att det går att ladda hängaren hållande i en hand
- Flexibel, går att hänga i krok, våningshänga, i ram eller på skafthängare
- Lagerfört standardprogram med många varianter
| Art nr. | L, mm | A, mm | C, mm | Ø, mm |
|---|---|---|---|---|
| HCS HQW D 176001 | 1250 | 600 | 600 | 6 |
| HCS HQW D 134894 | 1650 | 600 | 1000 | 6 |
| Art nr. | L, mm | A, mm | C, mm | Ø, mm |
|---|---|---|---|---|
| HCS HQW D 176001 | 1250 | 600 | 600 | 6 |
| HCS HQW D 134894 | 1650 | 600 | 1000 | 6 |
- Kontaktpunkt ger också HQW D stabilitet
- Gör det enkelt att fylla lackanläggning på höjden
- Skaft har dubbla toppkrokar, både plan och 90°
| Art. nr. | A, mm | L, mm | Ø, mm |
|---|---|---|---|
| HCS HQW D 86568 | 500 | 552 | 6 |
| HCS HQW D 87596 | 600 | 652 | 6 |
| HCS HQW D 94879 | 800 | 852 | 6 |
| Art. nr. | A, mm | L, mm | Ø, mm |
|---|---|---|---|
| HCS HQW D 86568 | 500 | 552 | 6 |
| HCS HQW D 87596 | 600 | 652 | 6 |
| HCS HQW D 94879 | 800 | 852 | 6 |
- Stabilt skaft för HQW D
- Skaft har dubbla toppkrokar, både plan och 90°
| Art. nr. | B, mm | Ø, mm | c/c, mm | Antal hängpunkter |
|---|---|---|---|---|
| HCL HQW D 700X100 | 678 | 8 | 100 | 6 |
| HCL HQW D 800X100 | 778 | 8 | 100 | 7 |
| Art. nr. | B, mm | Ø, mm | c/c, mm | Antal hängpunkter |
|---|---|---|---|---|
| HCL HQW D 700X100 | 678 | 8 | 100 | 6 |
| HCL HQW D 800X100 | 778 | 8 | 100 | 7 |
- HQW D passar även ihop med våra flexibla hängsystem
| Art. nr. | Antal/kart. | B, mm | t, mm |
|---|---|---|---|
| HQW D BHL 30X1,5 | 100 | 30 | 1,5 |
| HQW D BH 40X1,5 | 100 | 40 | 1,5 |
| Art. nr. | Antal/kart. | B, mm | t, mm |
|---|---|---|---|
| HQW D BHL 30X1,5 | 100 | 30 | 1,5 |
| HQW D BH 40X1,5 | 100 | 40 | 1,5 |
- Insatser till BH- och BHL-hylsor breddar användbarheten för HQW D
| Art nr. | Antal/kart. | Färg |
|---|---|---|
| HQW G20 | 150 |  |
| Art nr. | Antal/kart. | Färg |
|---|---|---|
| HQW G20 | 150 | |
- Skyddar jordningspunkten och stabiliserar samtidigt HQW D
| Art nr. | Antal/kart. | Antal kart./pall | L x Ø mm | A, mm | B, mm | C, mm |
|---|---|---|---|---|---|---|
| 075X2,0 45DV | 3000 | 40 | 075X2,0 | 17 | 15 | 17 |
| 500X4,0 45DV | 400 | 30 | 500X4,0 | 20 | 20 | 19 |
| 800X4,0 45DV | 450 | 20 | 800X4,0 | 20 | 20 | 19 |
| Art nr. | Antal/kart. | Antal kart./pall | L x Ø mm | A, mm | B, mm | C, mm |
|---|---|---|---|---|---|---|
| 075X2,0 45DV | 3000 | 40 | 075X2,0 | 17 | 15 | 17 |
| 500X4,0 45DV | 400 | 30 | 500X4,0 | 20 | 20 | 19 |
| 800X4,0 45DV | 450 | 20 | 800X4,0 | 20 | 20 | 19 |
